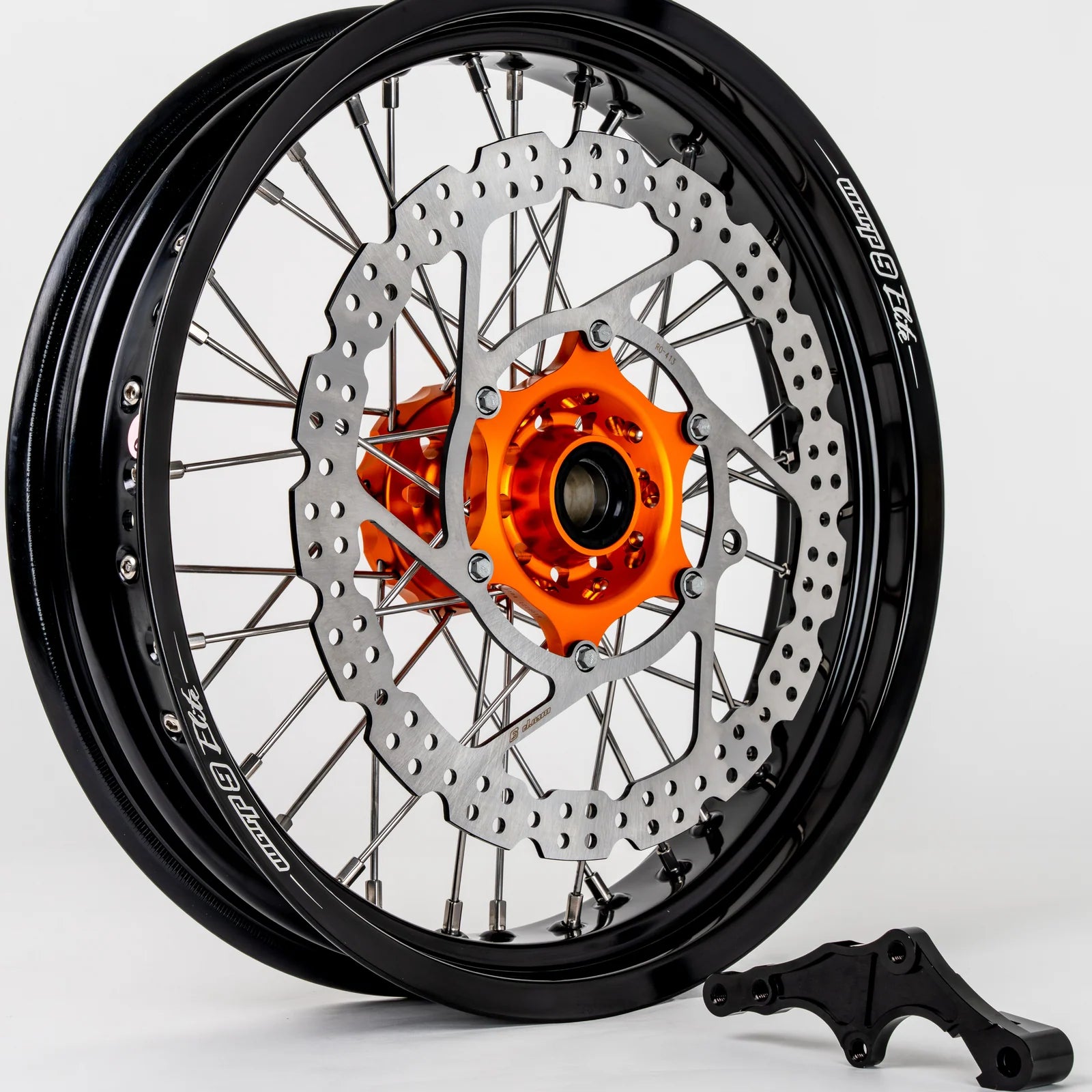

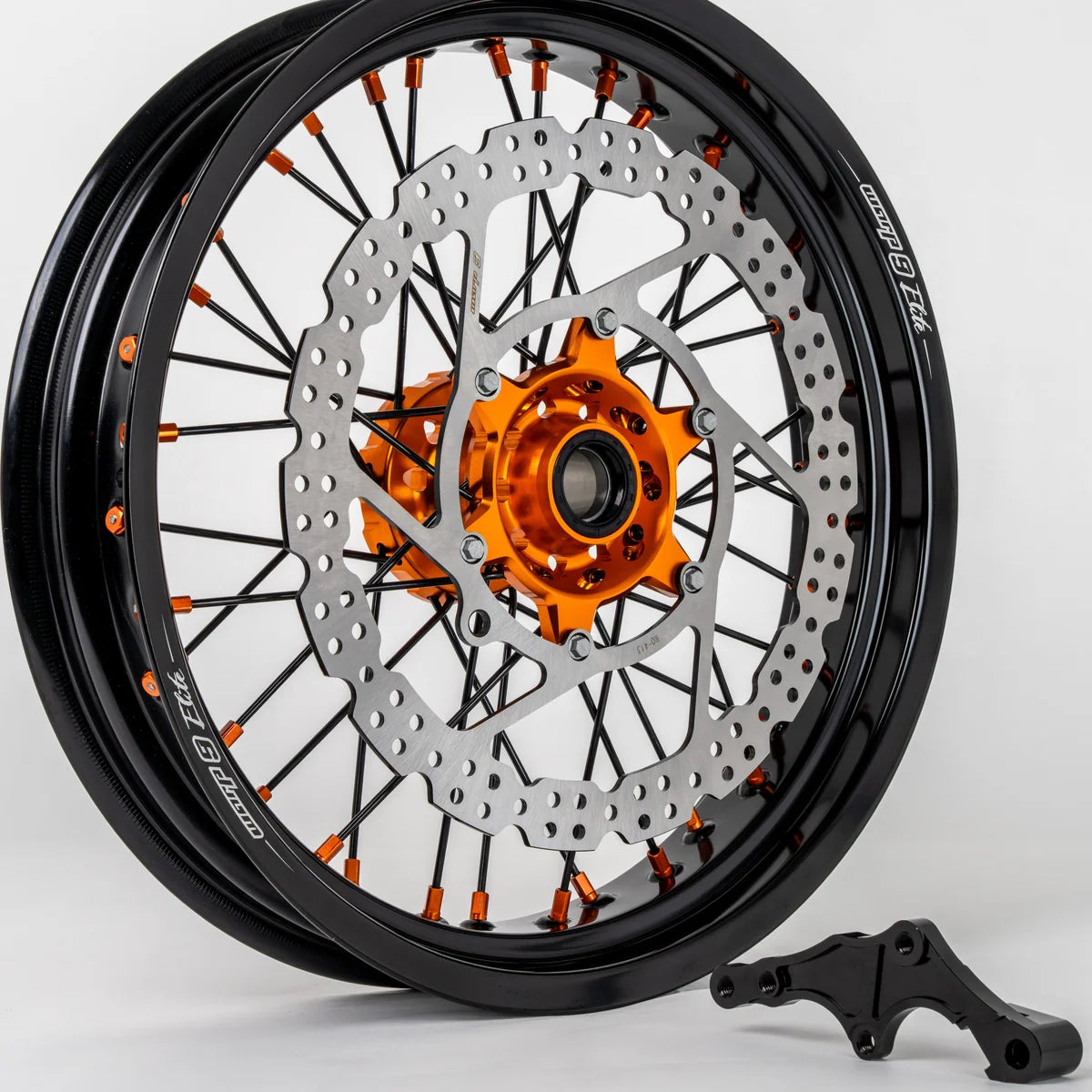

Convert your KTM, Husqvarna, or GasGas performance dirt bike into a dedicated supermoto machine with the Warp 9 Front 17" Supermoto Wheel. Featuring a vibrant orange anodized billet hub, black rim, and stainless steel spokes, this complete assembly comes pre-equipped with a fixed 320mm oversized brake rotor and a matching caliper relocation bracket. Note that wheel spacers are not included; you must reuse your OEM wheel spacers during installation.
Fitment Table (2-Stroke Applications)
| Year | Make | Model | Position | Notes |
| 2014–current | GasGas |
EX 250 (Brembo) / EX 300 (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2024–current | GasGas |
EX 250 F (Braketec) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2021–2023 | GasGas |
EX 250 F / EX 350 F / EX 450 F (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2021–2023 | GasGas |
MC 125 / MC 250 / MC 350 F / MC 450 F (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2022–2023 | GasGas |
MC 250 (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2014–current | Husqvarna |
TC 125 / TC 250 / TE 125 / TE 250 / TE 300 (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2017–current | Husqvarna |
TX 300 / TX 300i (Brembo) |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–2017 | KTM |
125 EXC / 125 EXC Six Days |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2009–2022 | KTM |
125 SX |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2023–current | KTM |
125 SX / 125 XC / 150 SX / 250 SX |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2021–2022 | KTM |
125 XC |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2017–2019 | KTM |
125 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2023–current | KTM |
125 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2023–current | KTM |
150 EXC |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2020–2021 | KTM |
150 EXC TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2009–2022 | KTM |
150 SX |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–2015 | KTM |
150 XC |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2017–current | KTM |
150 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2020–2022 | KTM |
150 XC-W TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–2016 | KTM |
200 EXC / 200 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–current | KTM |
250 EXC / 250 EXC Six Days |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2018–2021 | KTM |
250 EXC TPI / 250 EXC TPI Six Days |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–current | KTM |
250 EXC-F / 250 SX / 250 XC / 250 XC-F / 250 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2020–2022 | KTM |
250 XC TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2018–2022 | KTM |
250 XC-W TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2010–current | KTM |
300 EXC / 300 EXC Six Days / 300 XC / 300 XC-W |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2018–2021 | KTM |
300 EXC TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2020–2023 | KTM |
300 XC TPI / 300 XC TPI Six Days |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2019–2023 | KTM |
300 XC-W TPI |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
| 2024–current | KTM |
300 XC-W Hardenduro |
Front |
17x3.50 Supermoto. Includes fixed 320mm rotor and relocation bracket. Uses OEM spacers. |
TSO Tech Tip
When mounting a 320mm supermoto front brake rotor and relocation bracket, ensure the Brembo caliper slides freely on its guide pins and verify proper clearance between the spokes and the caliper body. Apply medium-strength threadlocker (blue Loctite) to all caliper bracket and rotor mounting bolts, and torque them precisely to factory service manual specifications before initial testing.
